Panel-Sided Garage

Detached Workshops and Garages - Assembled on Site

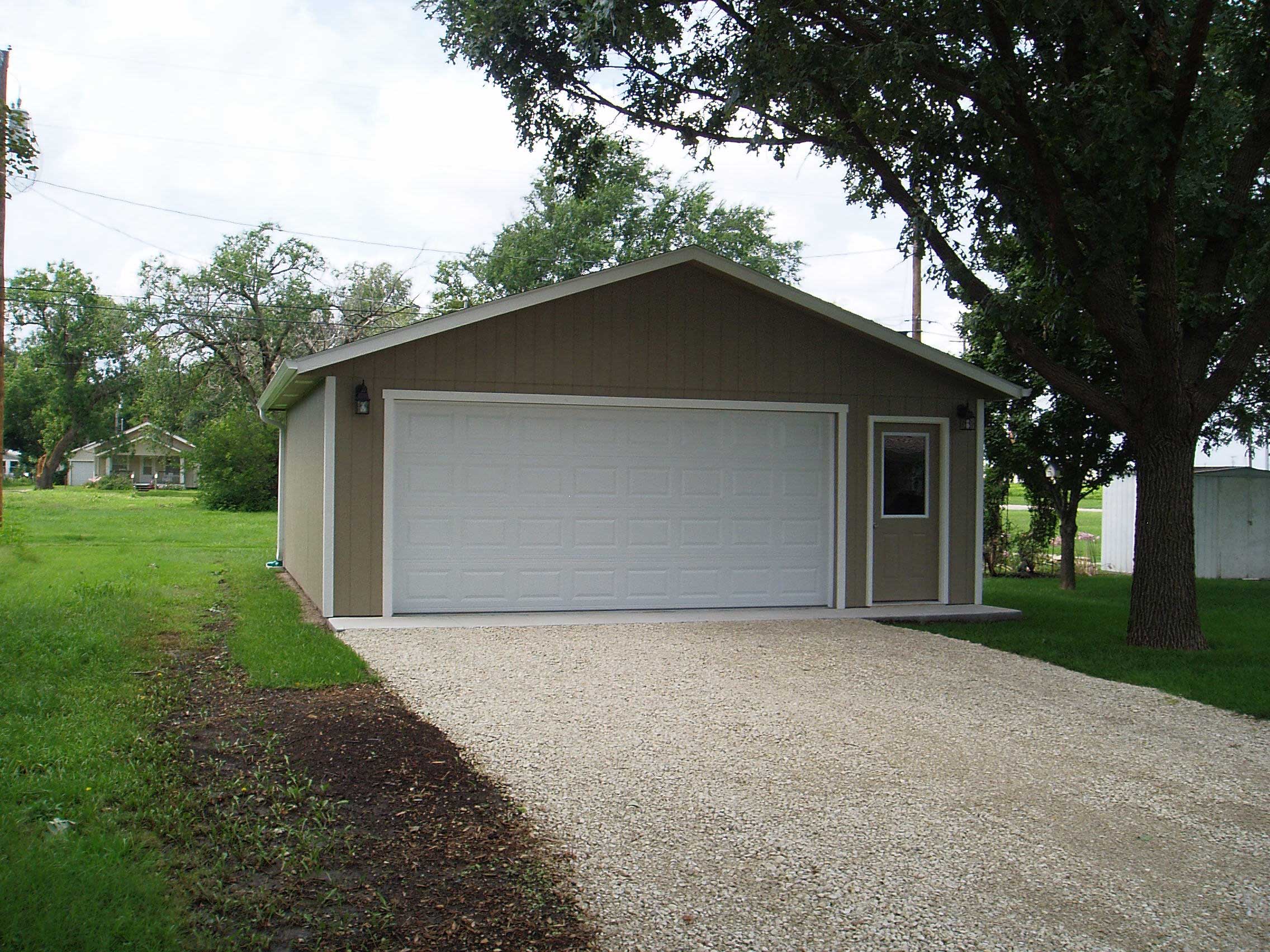

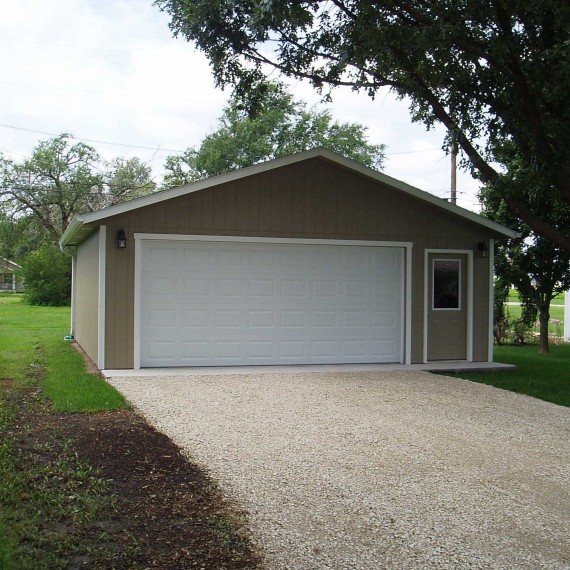

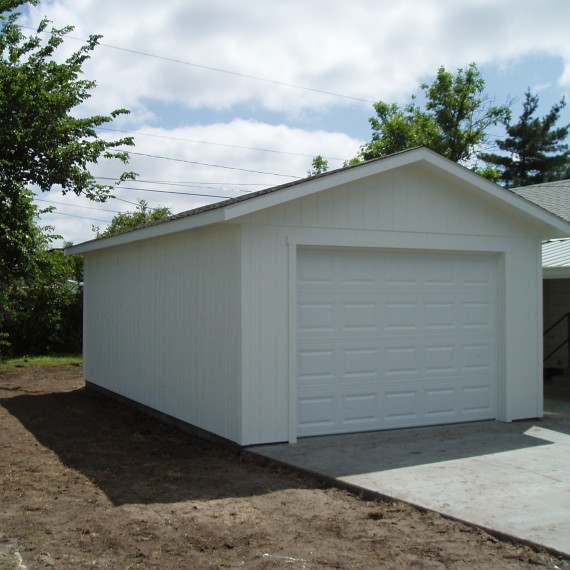

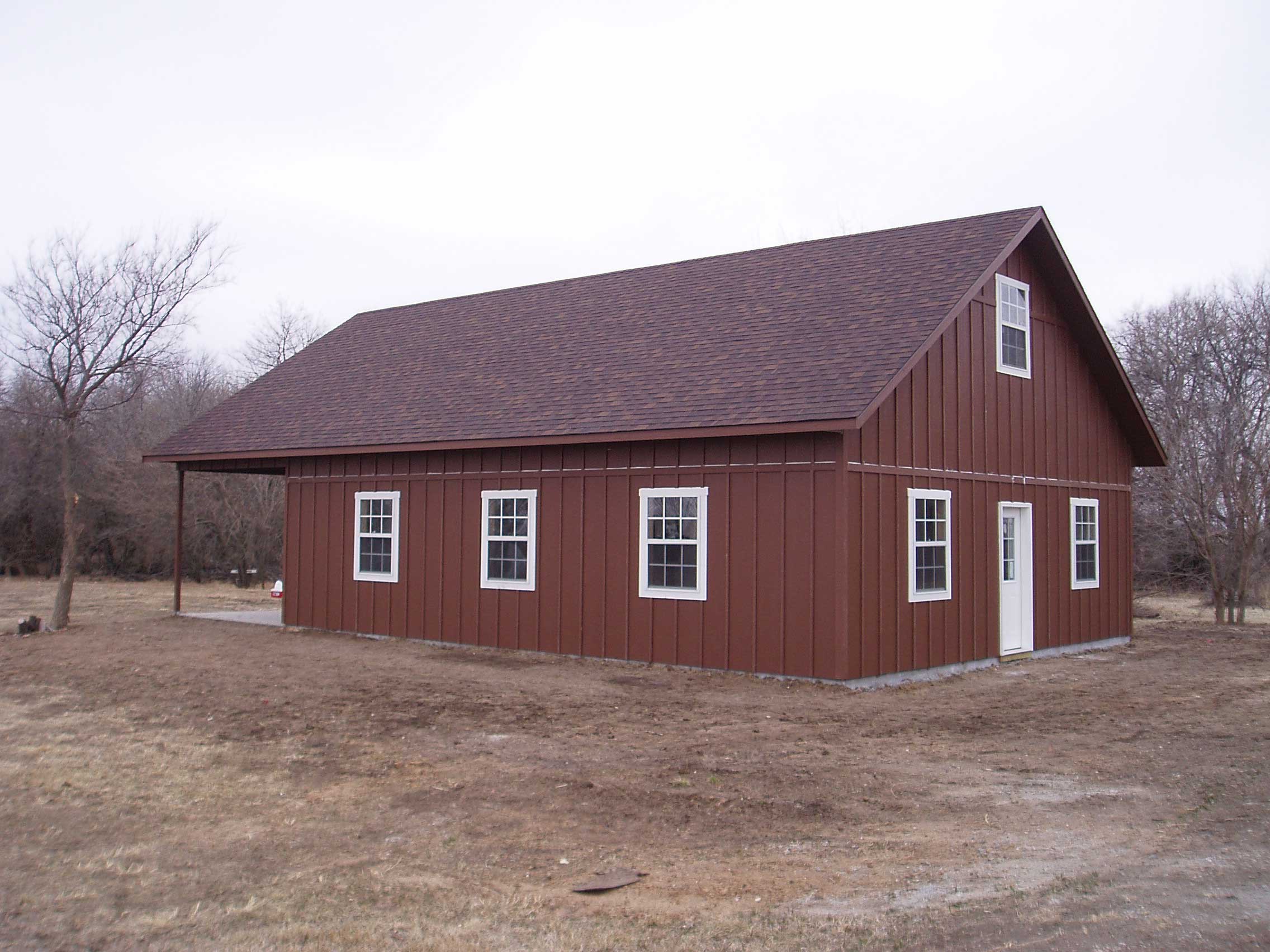

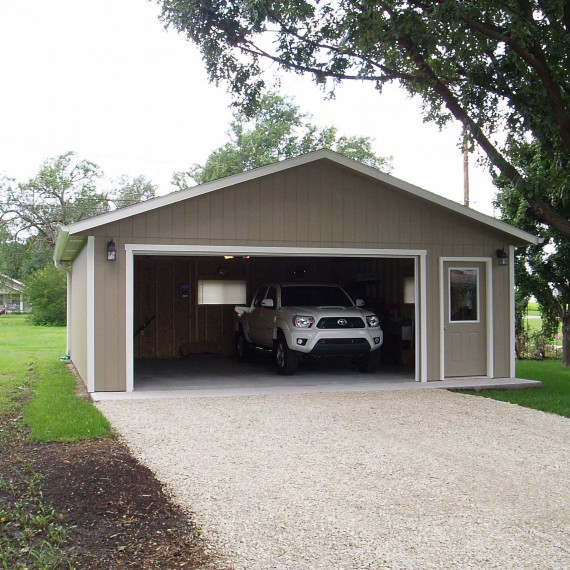

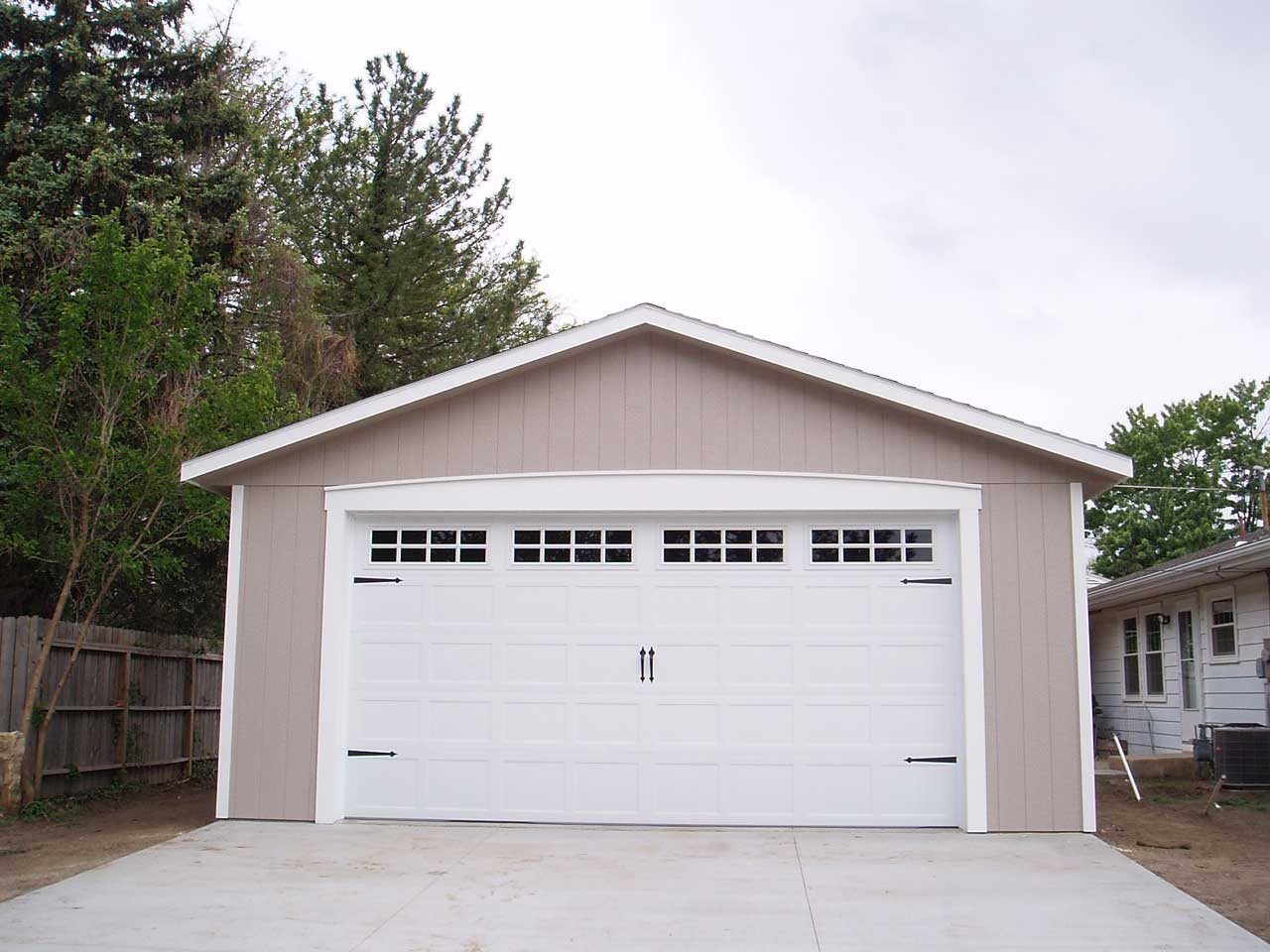

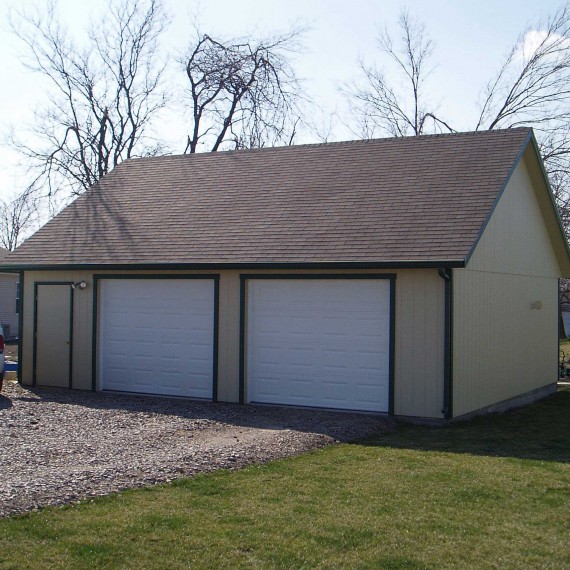

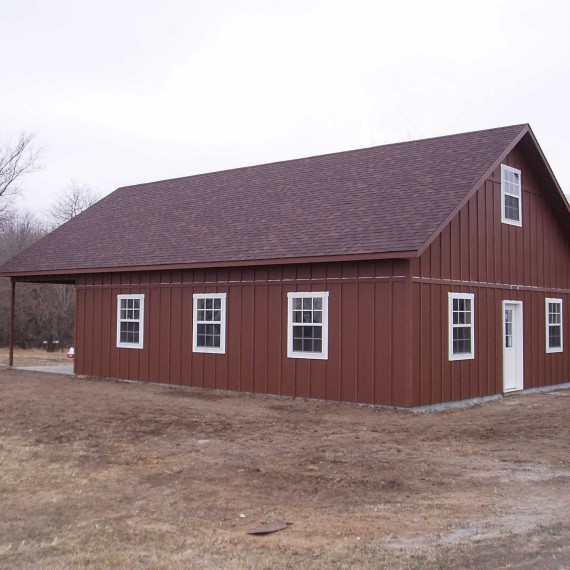

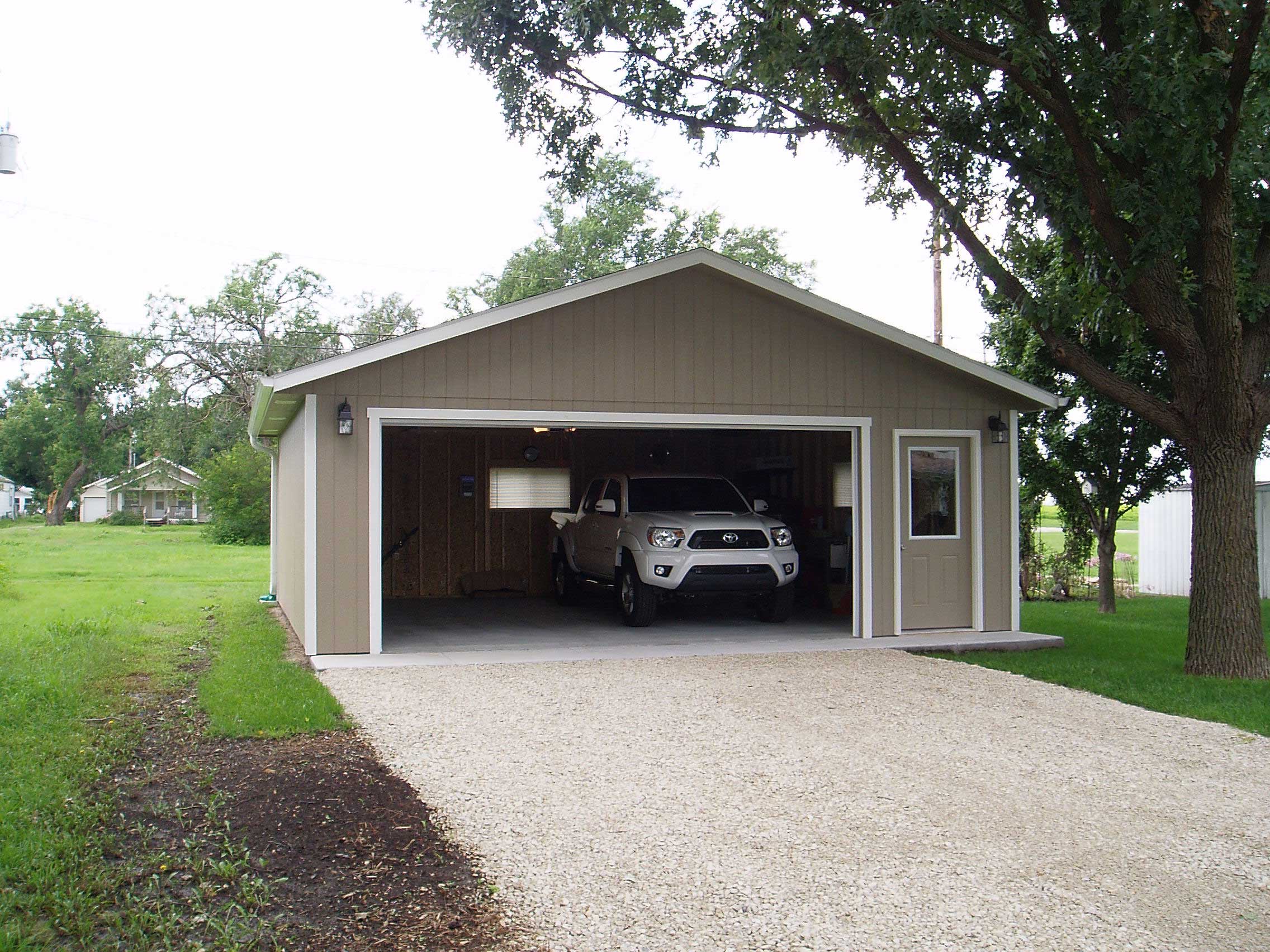

24’ x 24’ x 8’ Panel-sided Garage

Practical and affordable, the wood Panel-sided Garage is our sales leader. Standard home-style construction and 12″ roof overhangs with soffits coordinate with most residences. Walls, built on concrete by others, come in standard 8′, 9′, 10′ and 12′ heights with wall studs spaced on 16″ centers and fifty-year LP siding. Roof trusses engineered to withstand the loads of winter’s snow and wind are spaced 24″ OC. Lifetime laminated fiberglass shingles and fifteen year acrylic satin latex paint finish the exterior. Erected by experienced garage builders.

Features
Colors

Standard Features of STURDI-BILT Panel-sided Garages:

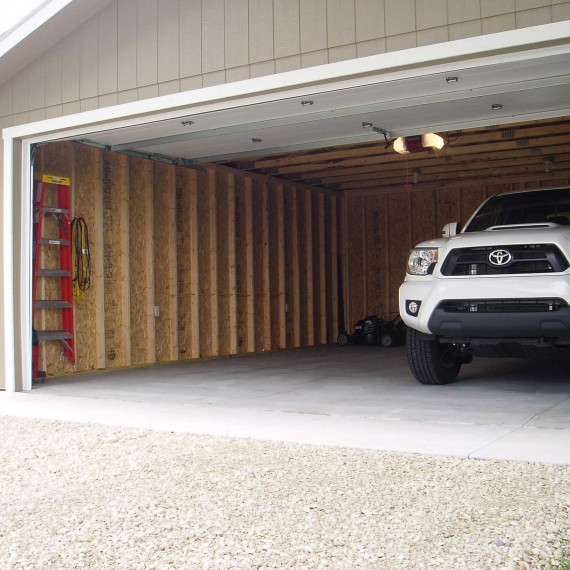

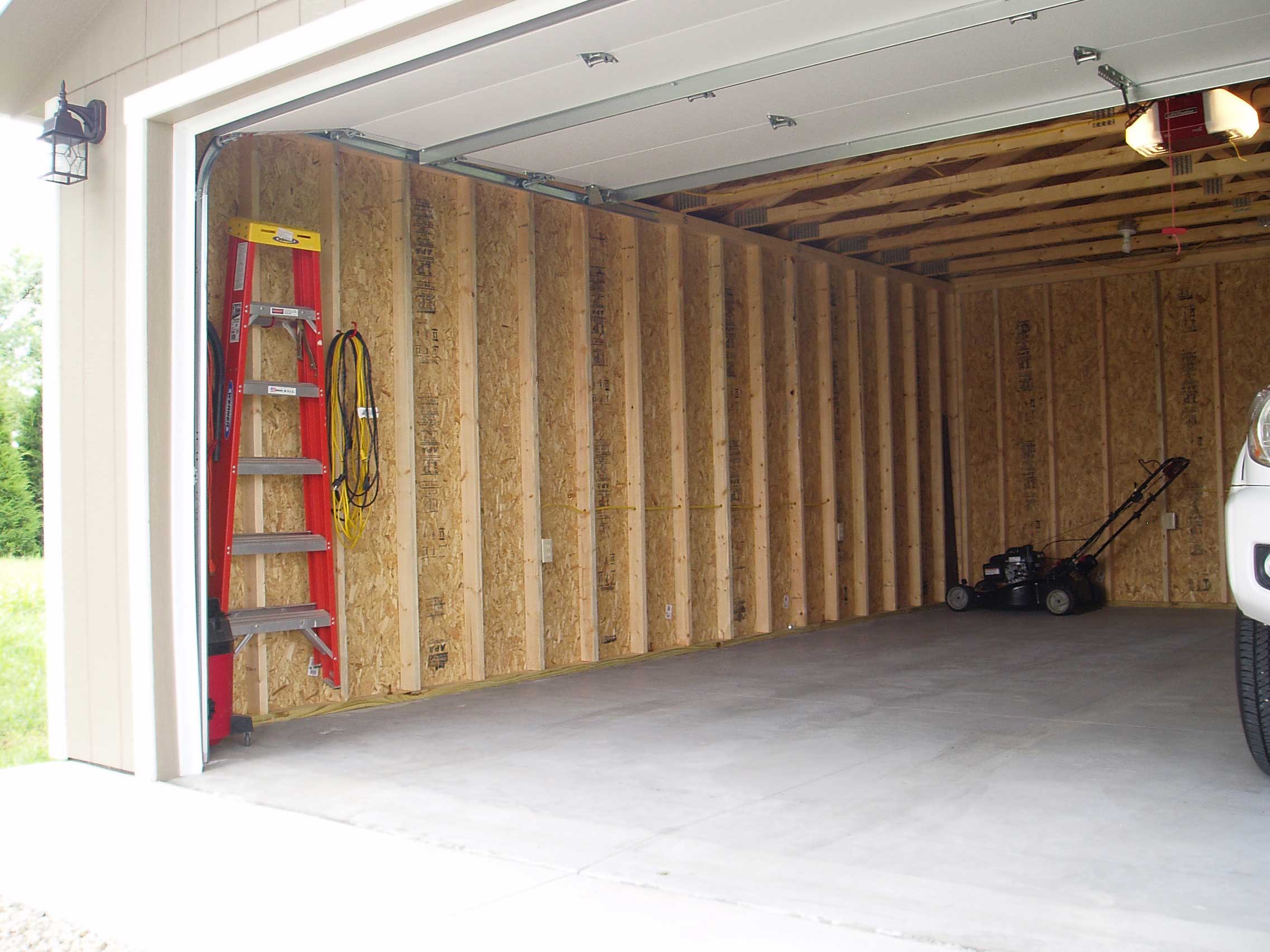

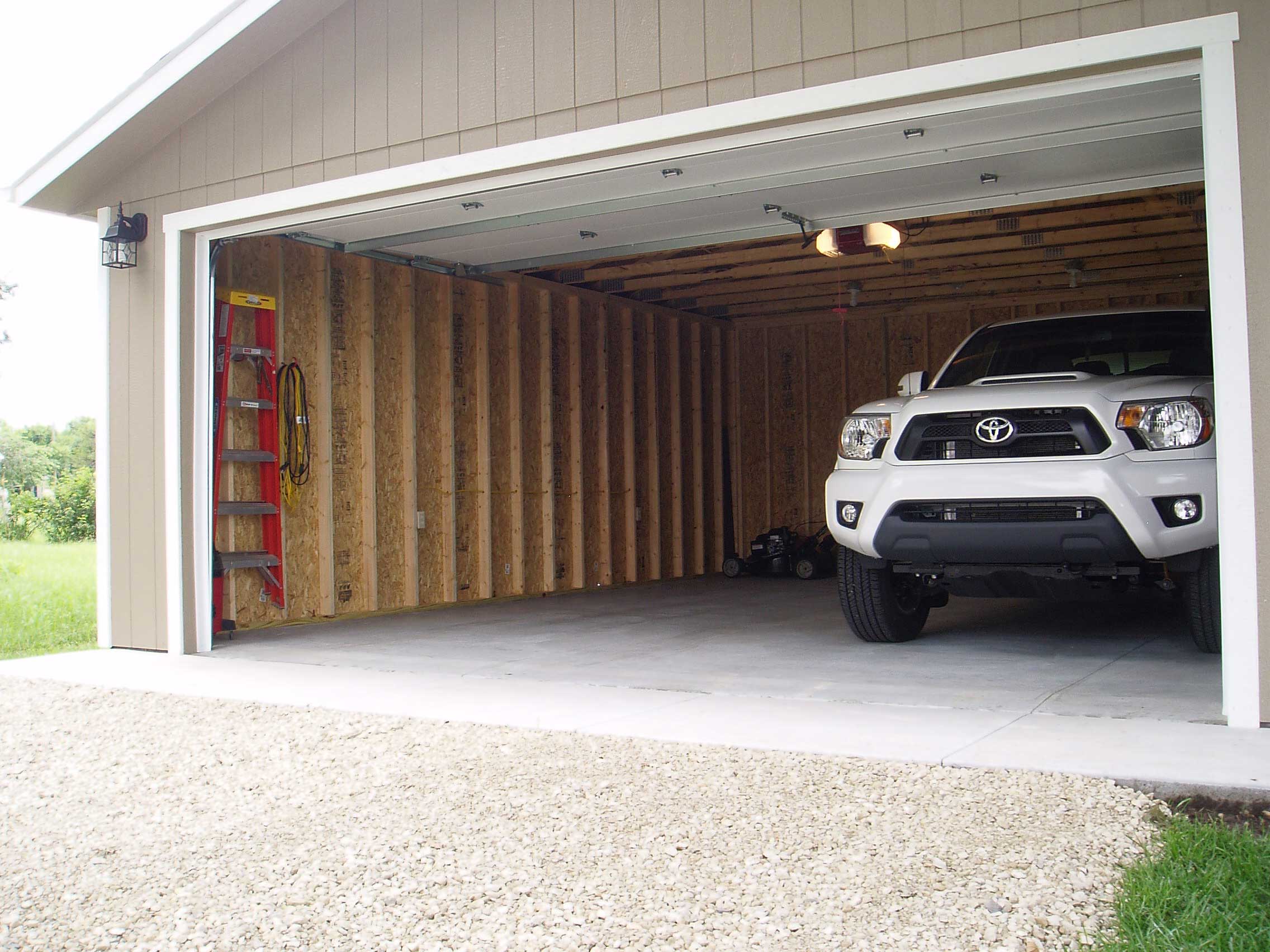

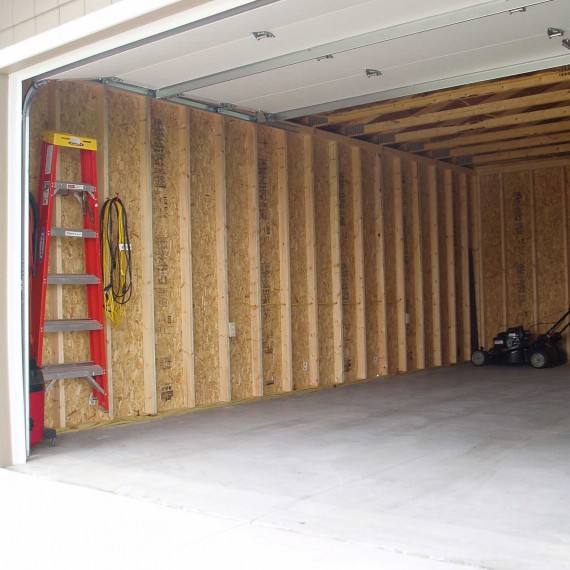

2×4 wall studs, 16″ on center (conversion to 2×6 wall studs is standard at 10′ and taller)

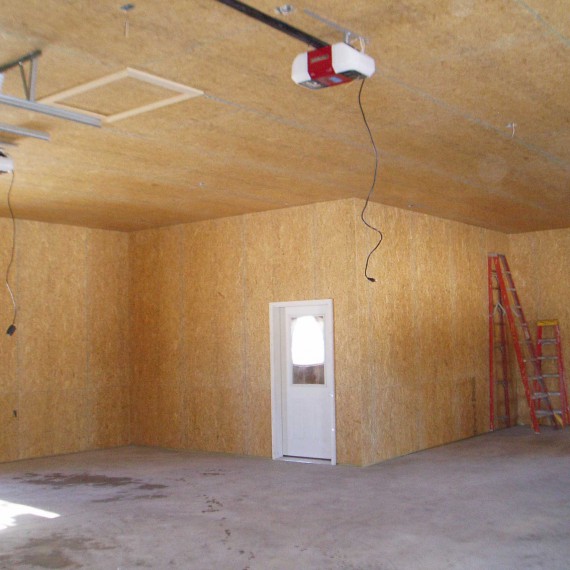

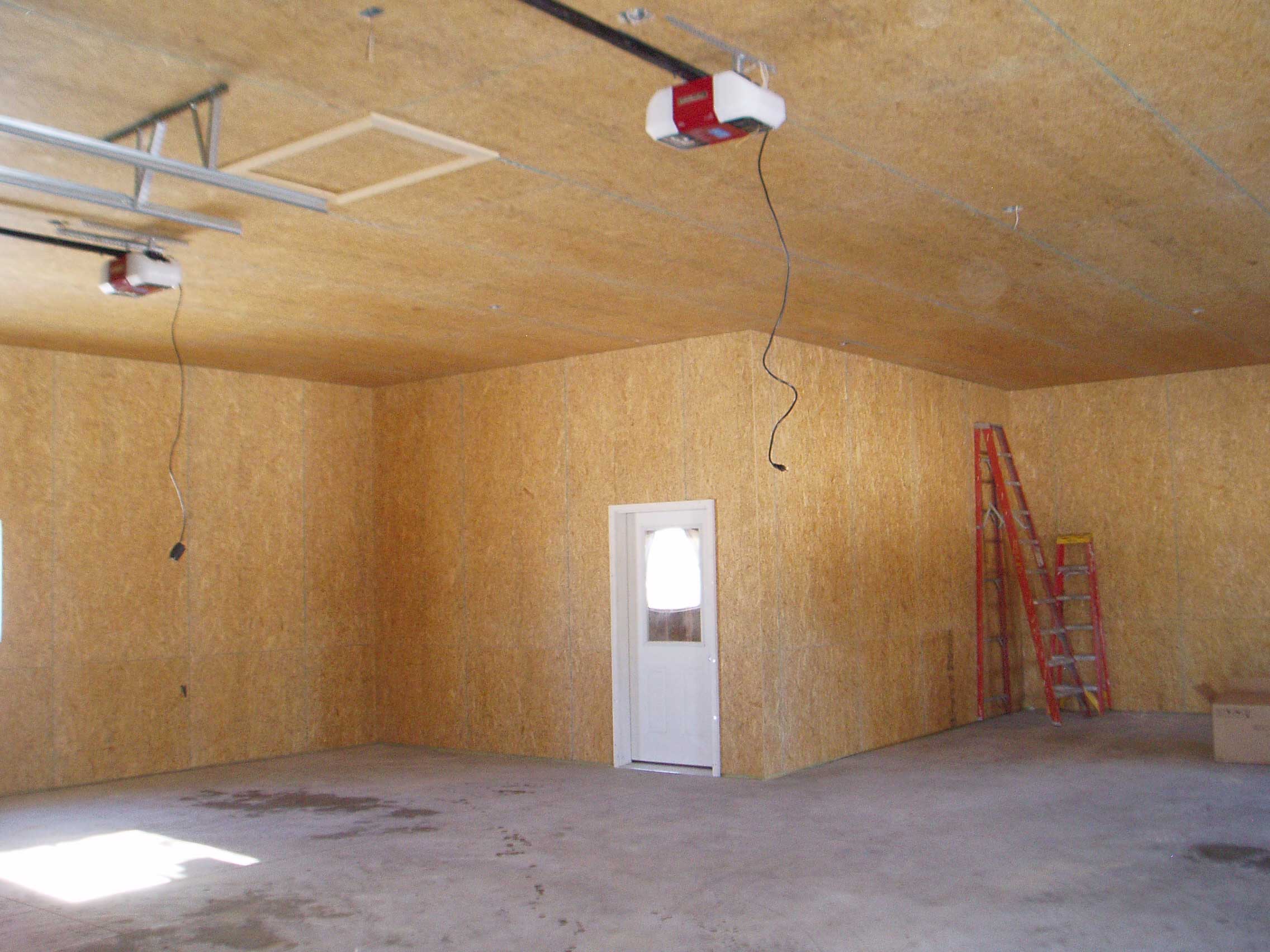

Choice of 8′, 9′, 10′, 11′, 12′, 14′, and 16′ high sidewalls; optional insulation and interior wall lining
LP SmartSide® panel siding, 50 year warranty, (SmartGuard® treatment resists termites, rot, mold, and fungal decay), option to convert to ⁷/₁₆” OSB boxing and housewrap only (for custom siding by others)
LP SmartSide® corner trims, 50 year warranty

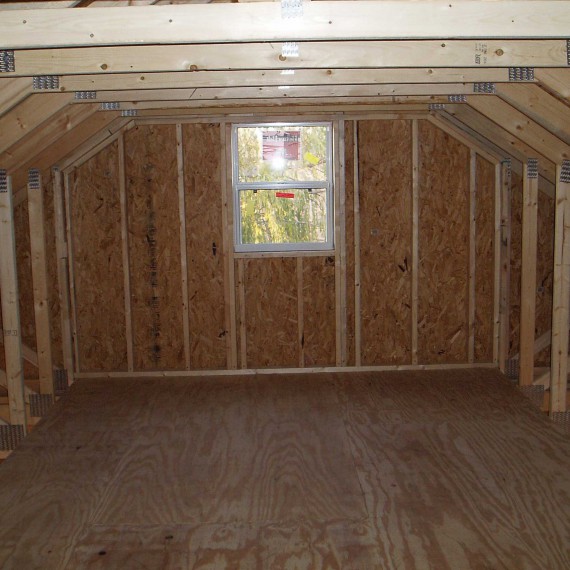

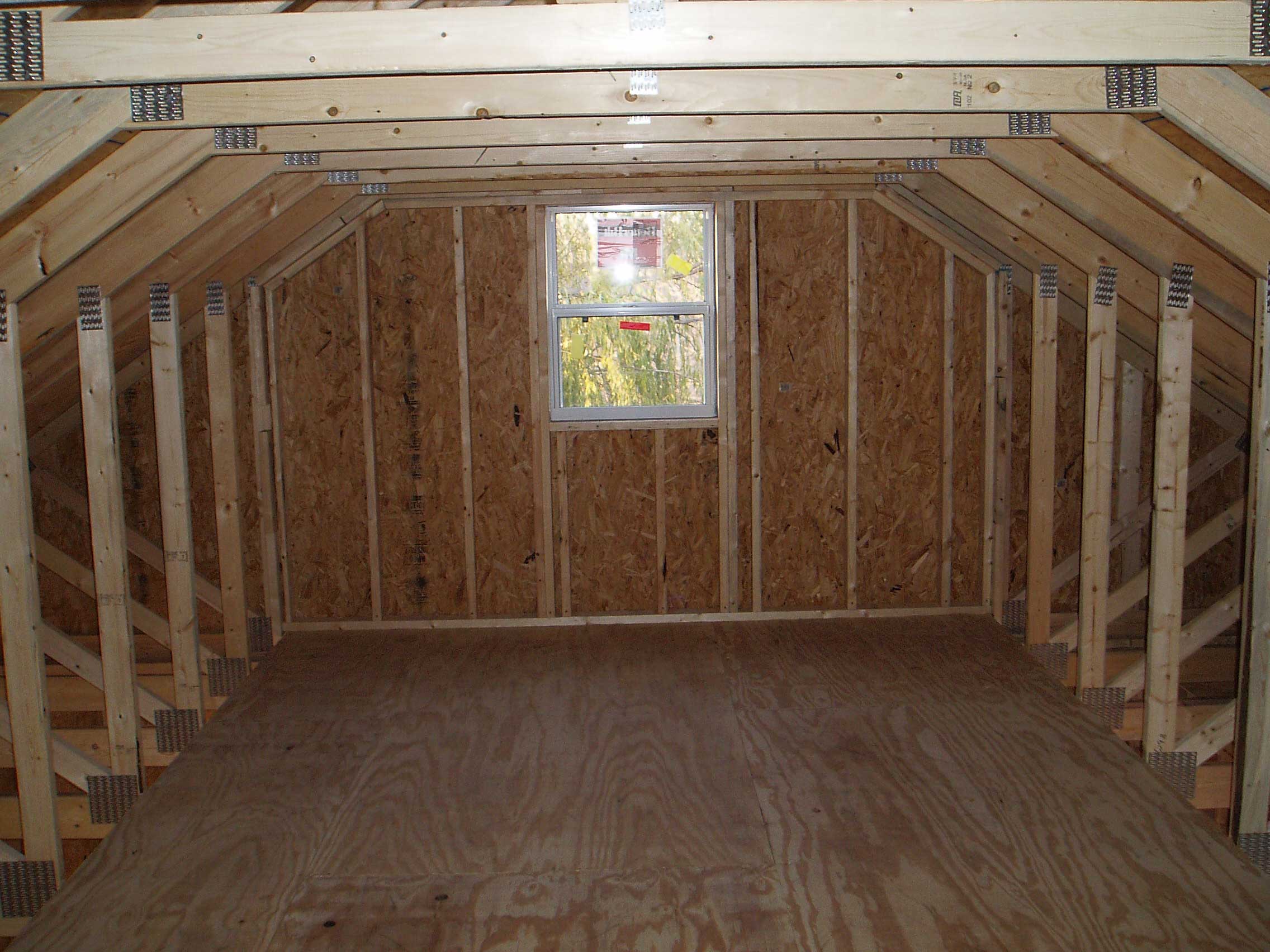

Engineered truss rafters, 24″ on center, 4/12 pitch (other pitches optional)
12″ overhangs on all four sides with facia trims and enclosed soffits
Choice of roofing:
- 7/16″ OSB roof sheathing, tar paper, lifetime laminated fiberglass shingles, choice of twelve colors
- 2×4 purlins, 29 gauge steel, G90 galvanized, 30 year warranty
3’x6’8″ steel-clad walk door (optional window in door)

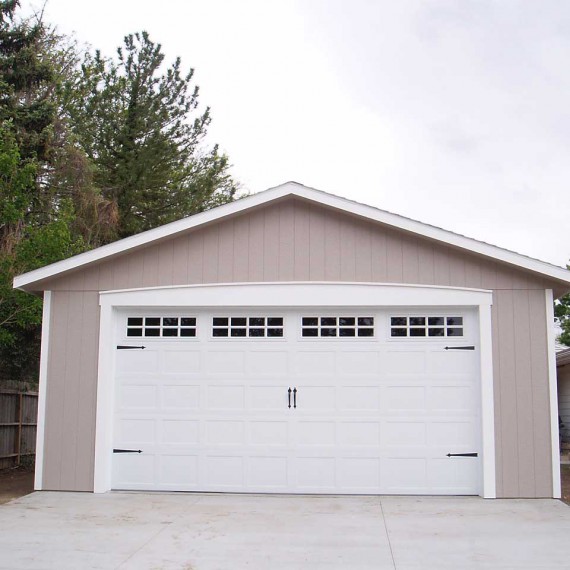

Steel garage door(s), insulation, windows and openers optional
Optional vinyl sliding windows are high quality, low-E coated, double-paned and American-made
Two coats of Sherwin Williams siding and trim paint applied with roller and brush, A-100® satin exterior acrylic latex, 15 year warranty, 14 standard colors (or choose your own)
